4800MHz-5000MHz 10W Final Solution

應(yīng)用方案 | 日期：2023-08-15 | 閱讀：

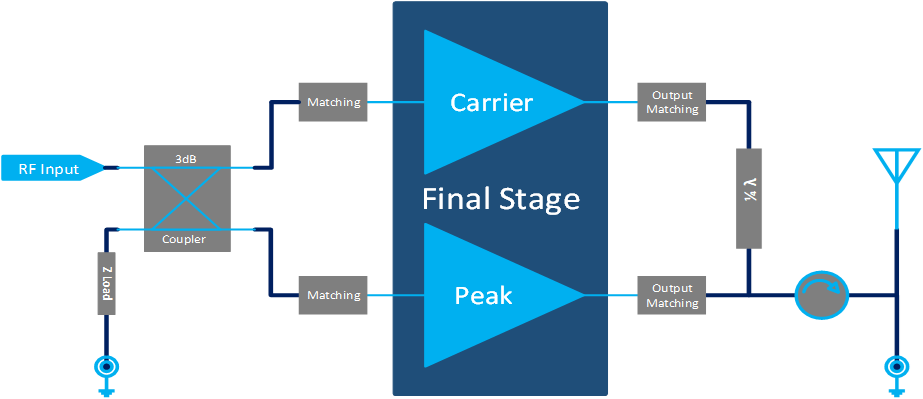

4800MHz-5000MHz 10W Final Solution(圖1)

Final:

DXG2PH50A-90N

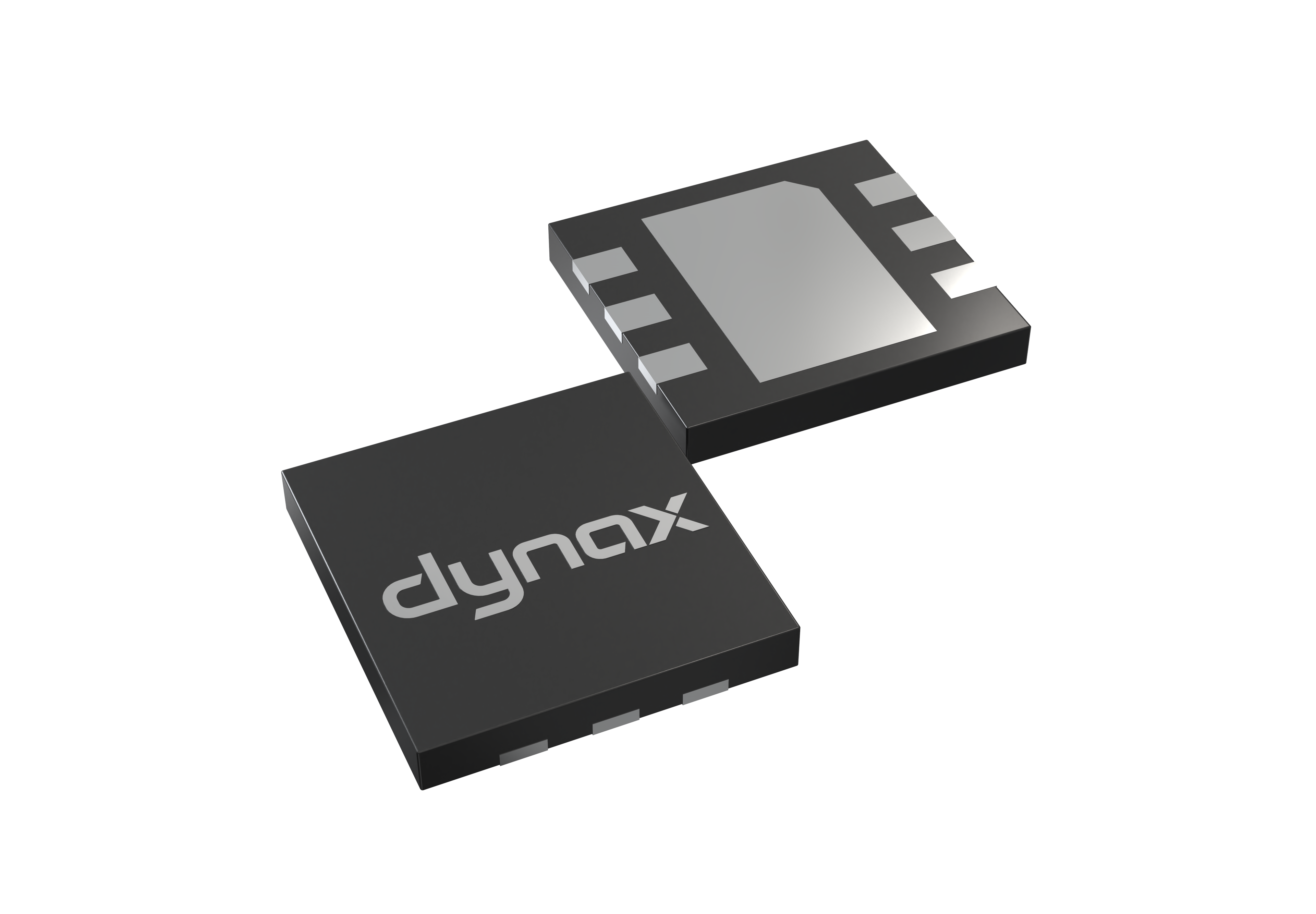

4800MHz-5000MHz 10W Final Solution(圖2)

Package Type:

DFN 7x 6.5mm




CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@41.3dBm

DE (%)@41.3dBm

ACLR (dBc)@ 41.3dBm

480049.712.348.0-32.0
488049.612.548.3-31.0
496049.512.349.2-32.0


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.5dB; 64DPCH;

Tested without isolator.
